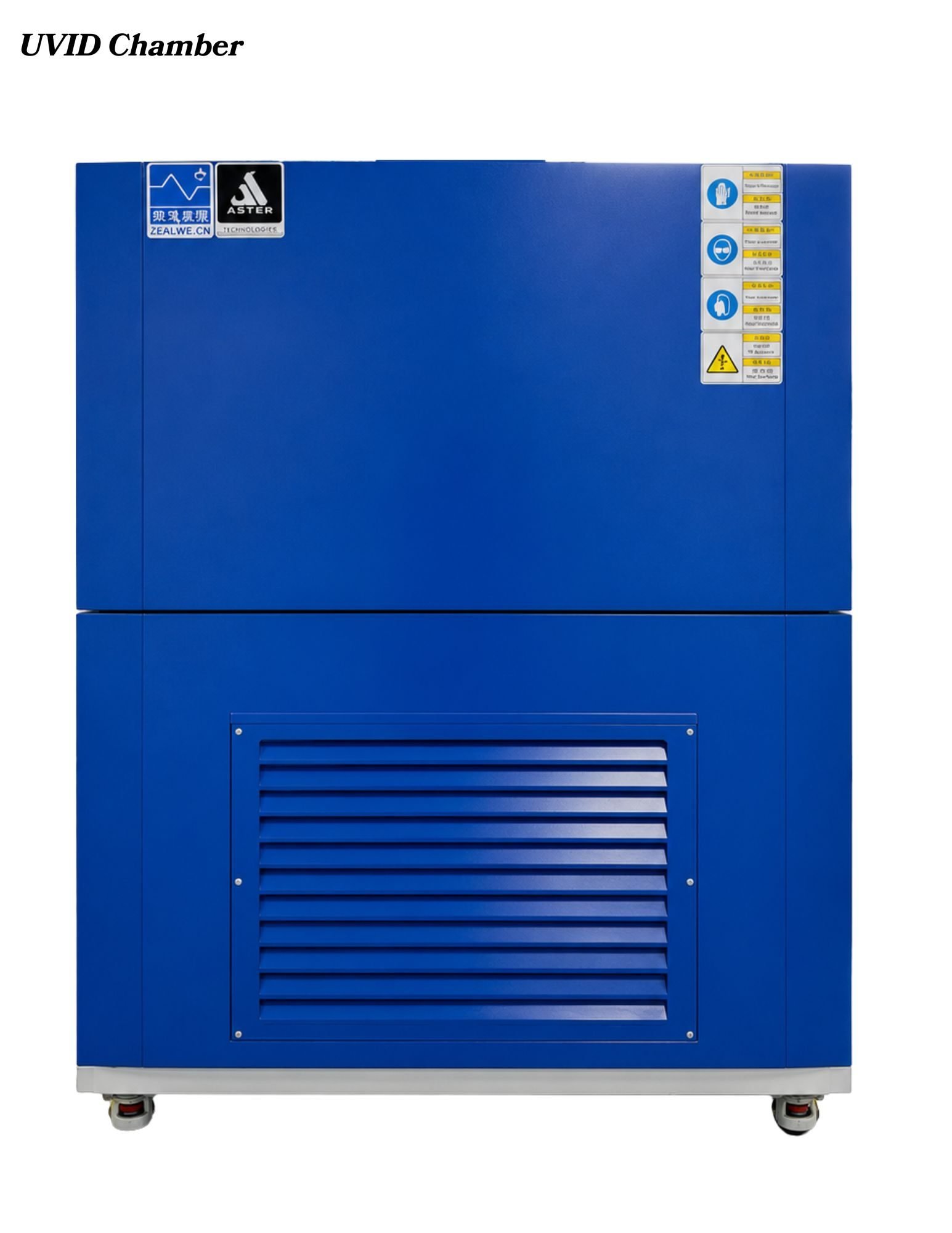

UVID Chamber

Compliant with IEC 61215-2:2021 (MQT10) UV preconditioning test.

• Designed to test 25 M10 solar cells with a 1900 × 1000 mm illuminated area.
• Class BBA UV light source with spectral range 280–400 nm and irradiance 150–250 W/m².
• Dual 2000 W UV lamp system with independent irradiance and temperature control.
• Integrated UVA/UVB radiometers and T-type thermocouples for real-time monitoring and data recording.
• Chamber operating temperature: 60–80°C (±5°C) with high-reflectivity aluminum interior for uniform UV exposure.
• Automatic test termination based on preset time or cumulative UV dose.
• Power requirement: AC 380 V ±10%, 6 kW.
